Navigation in the schematics

Structure and schematic page with selected component

In the schematic you can navigate via the schematic page as well as via the structure.
The desired schematic element (e.g. device, pin) you can select on the schematic page or in the structure.

A schematic page can contain multiple hotspots for the same component or page link.
When you click on one of the hotspots, all hotspots for the same component/page link are highlighted. The currently selected hotspot can be displayed in a different color/shape.

By selecting, all information is updated immediately.
When hovering on the schematic page, the component is displayed.

The structure supports you in selecting the desired schematic element:

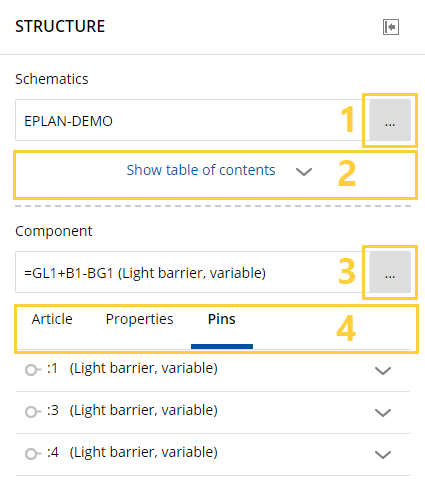

Structure in schematic

1	Schematic Select schematic.
2	Schematic page Show table of contents and select schematic page. Hide/Show table of contents The table of contents can contain a large number of entries. You can show/hide it if necessary.
3	Component You can select the component via the selection dialog in the structure or directly by clicking on the schematic page. The double click on the schematic page jumps to the next visible page of the component. Article, Properties and Pins show you further information and clickable entries for the selected schematic element. Pins Pins can be selected directly by clicking on the schematic page or via Properties or Pins in the structure. The selected pin is displayed in the component field. Double-clicking on the schematic page jumps to the next visible page of the pin. Properties and Pins show further information and clickable entries for the selected schematic element.
4	Article, Properties, Pins Article If the selected schematic element is an article, it is displayed under Articles and can be added to the shopping cart (provided the article is orderable), see Article. Properties Under Properties, visible pages and connections to the selected schematic element can be displayed, which you can use to navigate in the schematic by clicking on them, see Properties. Pins Under Pins, visible pages and connections to the selected schematic element can be displayed, which you can use to navigate in the schematic by clicking on them, see Pins.

Schematic structure and schematic page
