Properties

Under Properties, Visible pages and Connections of the selected schematic element can be displayed and selected.

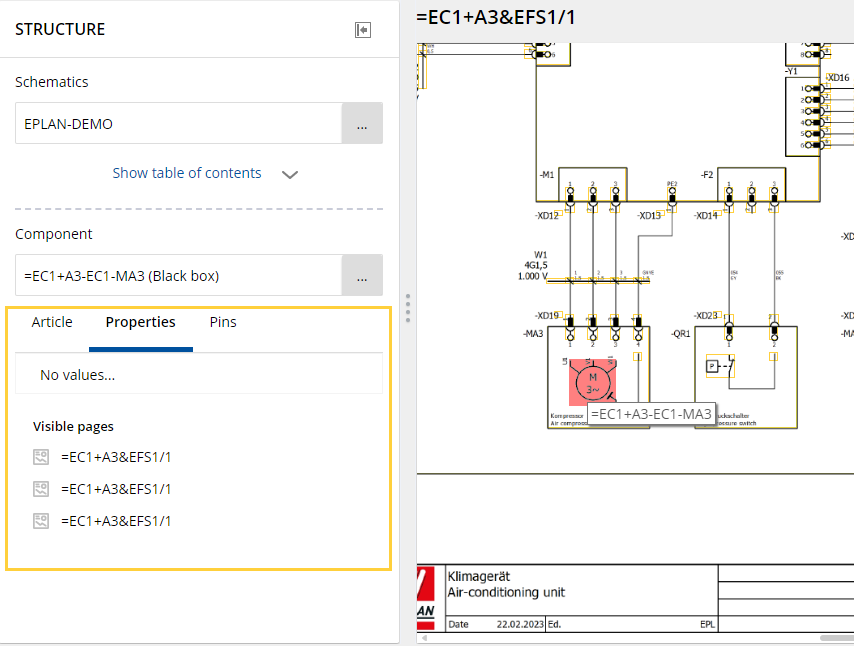

Properties with visible page and connection of the selected schematic element

	Visible pages Visible pages inform where the selected schematic element (device, pin) is drawn everywhere. By clicking you jump to the desired visible page.
	Connections Connections can be displayed for the selected schematic element. By clicking you jump to the desired connection (signal tracing).

Alternatively, you can navigate via the schematic page.
Connections and display locations will update automatically in the structure.

If further information is available for the selected element, it will be displayed under the properties (e.g. technical data).
Otherwise the entry "No values ..." is displayed.

Schematic structure and schematic page
